UV series motor protection

You are here: Home » Products » Circuit breaker » Liuyu circuit breaker

Product Info

Category Name: Liuyu circuit breaker

Product name: UV series motor protection

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Application

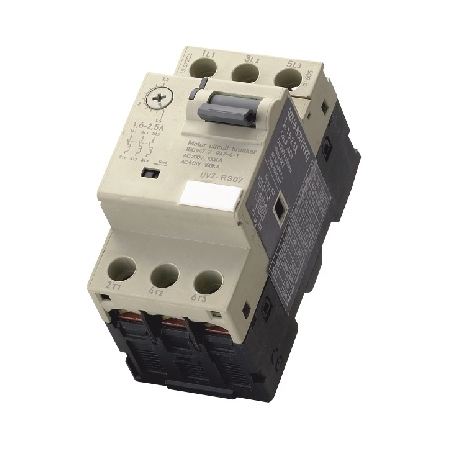

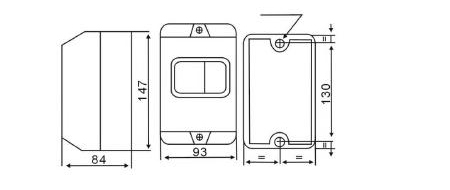

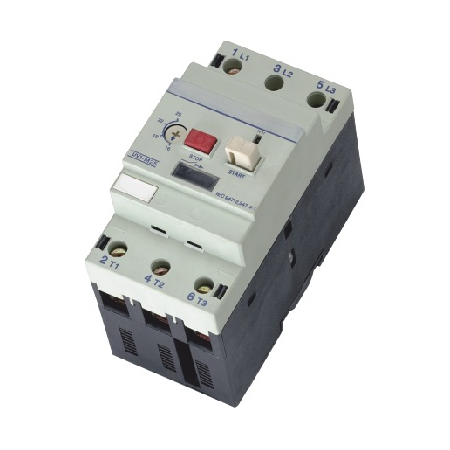

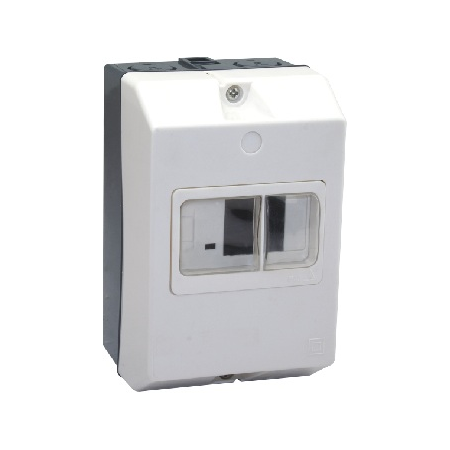

UV series mot or protection circuit breaker is applied in the power ci rcuit of AC50/60Hz, voltage up to 660V, current is from 0.1 to 80A. And it is mainly used for the overload and short-circuit protection of the motor. It has the ch aracteristics of modular design, beautiful appearance, small size, open phase protection, with thermal relay inside, mighty functionality, and good universality. It can form into direct starter of motor with conta- ctor. Protection degree of its enclosure can reach IP65.

It accords with IEC60947.2, IEC60947-4.1 and EN60947-1 standard.

Specification

Type	Standard power ratings of 3-phase motors 50/60Hz in category AC-3						Setting range
	220V	380V	415V	440V	500V	660V
	KW	KW	KW	KW	KW	KW
UV1-M01	--	--	--	--	--	--	0.1-0.16
UV1-M02	--	--	--	--	--	--	0.16-0.25
UV1-M03	--	--	--	--	--	--	0.25-0.4
UV1-M04	--	--	--	--	--	0.37	0.4-0.63
UV1-M05	--	--	--	0.37	0.37	0.55	0.63-1
UV1-M06	--	0.37	--	0.55	0.75	1.1	1-1.6
UV1-M07	0.37	0.75	1.1	1.1	1.1	1.5	1.6-2.5
UV1-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
UV1-M10	1.1	2.2	2.2	3	3.7	4	4-6
UV1-M14	2.2	4	4	4	5.5	7.5	6-10
UV1-M20	4	7.5	7.5	7.5	10	11	10-16
UV1-M21	5.5	10	9	9	11	15	16-20
UV1-M22	5.5	11	11	11	15	18.5	20-25
UV2-M01/RS01	--	--	--	--	--	--	0.1-0.16
UV2-M02/RS02	--	--	--	--	--	--	0.16-0.25
UV2-M03/RS03	--	--	--	--	--	--	0.25-0.4
UV2-M04/RS04	--	--	--	--	--	0.37	0.4-0.63
UV2-M05/RS05	--	--	--	0.37	0.37	0.55	0.63-1
UV2-M06/RS06	--	0.37	--	0.55	0.75	1.1	1-1.6
UV2-M07/RS07	0.37	0.75	0.75	1.1	1.1	1.5	1.6-2.5
UV2-M08/RS08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
UV2-M10/RS10	1.1	2.2	2.2	3	3.7	4	4-6.3
UV2-M14/RS14	2.2	4	4	4	5.5	7.5	6-10
UV2-M16/RS16	3	5.5	5.5	7.5	7.5	9	9-14
UV2-M20/RS20	4	7.5	9	9	9	11	13-18
UV2-M21/RS21	5.5	11	11	11	11	15	17-23
UV2-M22/RS22	5.5	11	11	11	15	18.5	20-25
UV2-M32/RS32	7.5	15	15	15	18.5	26	24-32
UV3-M06	--	0.37	--	0.55	0.75	1.1	1-1.6
UV3-M07	0.37	0.75	1.1	1.1	1.1	1.5	1.6-2.5
UV3-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
UV3-M10	1.1	2.2	2.2	3	3.7	4	4-6
UV3-M14	2.2	4	4	4	5.5	7.5	6-10
UV3-M20	4	7.5	7.5	7.5	10	11	10-16
UV3-M25	5.5	11	11	11	15	18.5	16-25
UV3-M40	11	18.5	18.5	22	25	33	25-40
UV3-M63	15	30	33	33	40	55	40-63
UV3-M80	22	40	45	45	55	63	56-80
