General

This circuit breaker is applied to protect the over-current of electrical apparatus and circuit device of construction and similar buildings in the circuit of AC 50Hz, rated voltage 230V/400V and rated current up to 125A. It can also applied for unfrequent making-breaking operation. It accords with IEC60898, GB10963 standard.

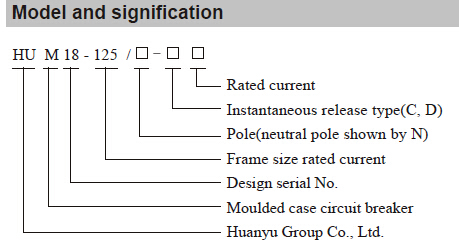

Main technical parameter

1. Frame size rated current Inm: 40A

2. Rated voltage Ue: 50Hz, 230V/400V.

3. Rated current In: C type: 63A, 80A, 100A, 125A; D type:63A, 80A, 10A.

4. Rated breaking capacity Ics=7500A, Icn=15000A.

5. Pole number: 1P, 1P+N, 2P, 3P, 3P+N, 4P.

6. Mechanical life: 8000 times.

7. Electric life: 4000 times.

8. Instantaneous release type and current range: C Type: use in lighting distribution, socket loop or parts of motivity distribution system.

D Type: use in motivity or strong electromagnetic induction load loop, for example motor load etc, 10In~20In.

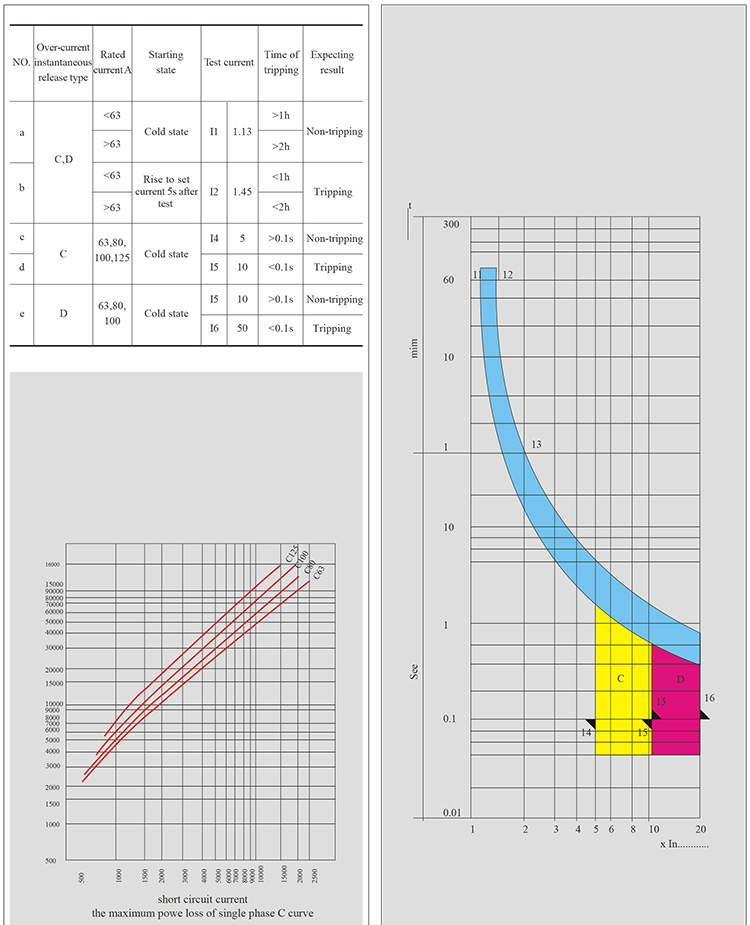

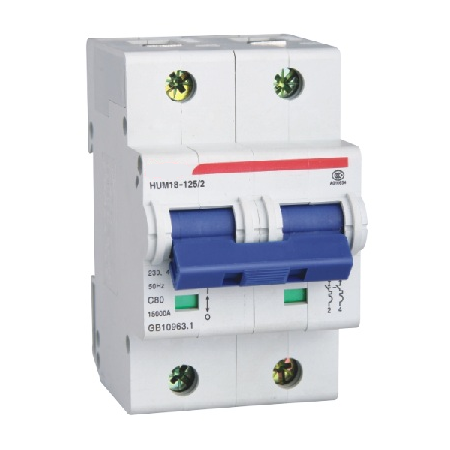

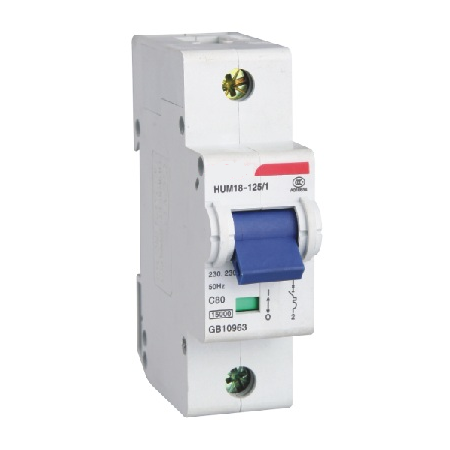

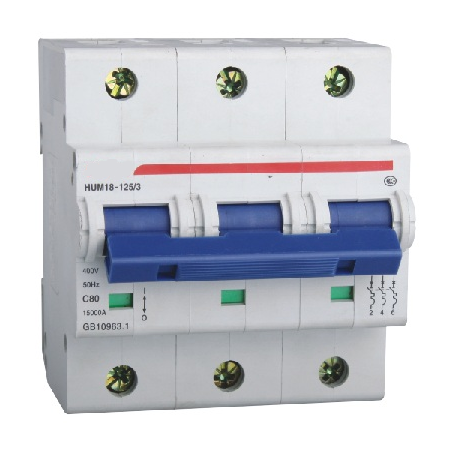

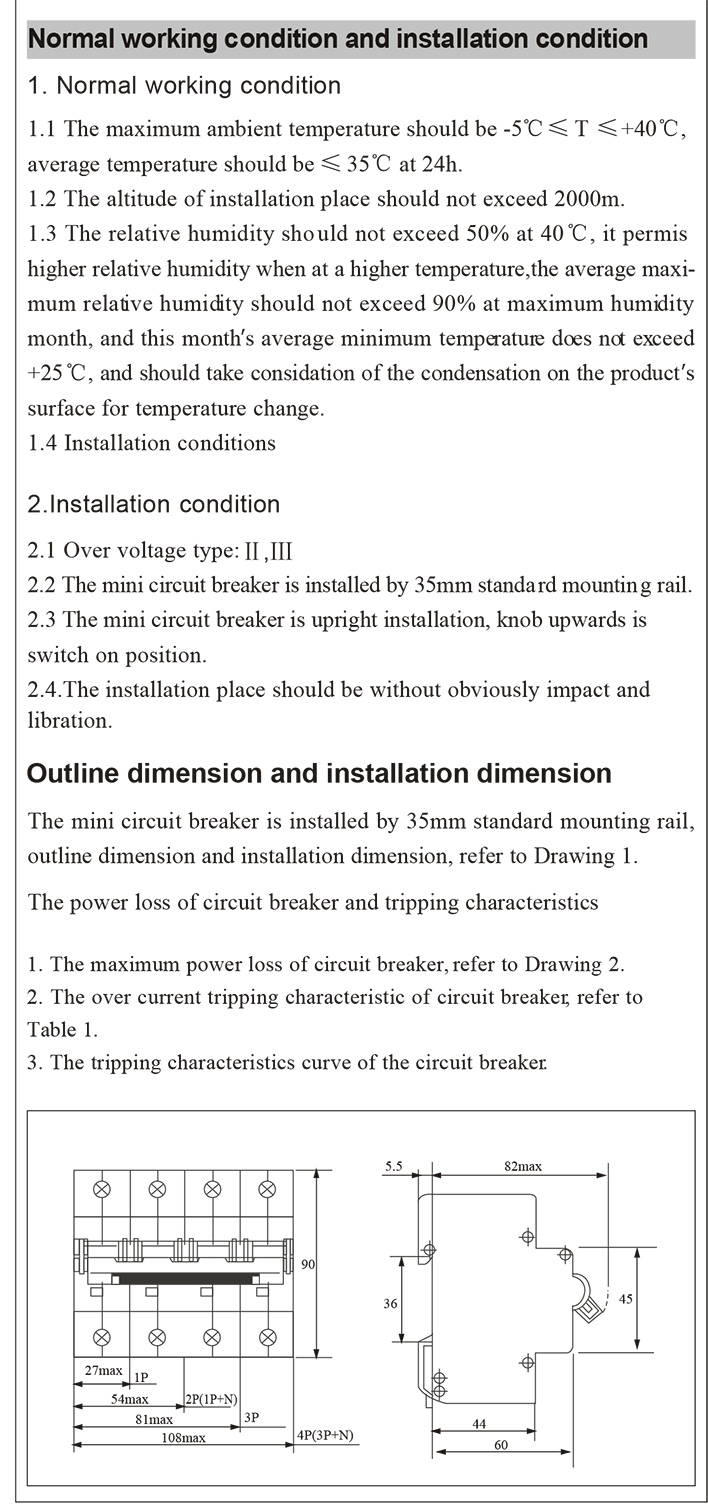

Structure characteristic

The mini circuit breaker uses high accuracy bimetal for inverse time lag. Thermal protection element, accurate protection characteristic. The contact system adopt double breakpoints serial link structure,double arc extinguish system, low voltage of breakpoint, good characteristic of current limiting at a high breaking capacity. have obvious position state Indication ; connectin g terminal adopt enhance type frame construction, can connect to lead of 2.5mm²~50mm².

The circuit breake r can be with shunt release,auxiliary contact etc accessories.
