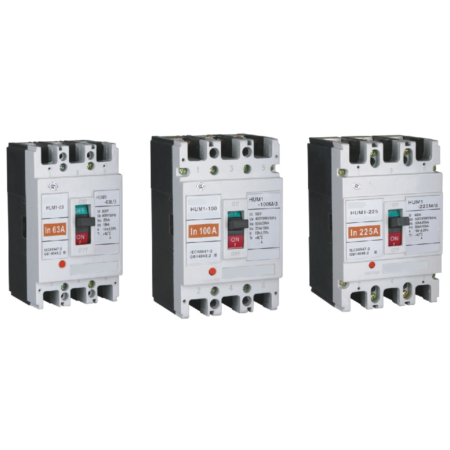

HUM1 moulded case circuit breaker

You are here: Home » Products » Circuit breaker » Liuyu circuit breaker

Product Info

Category Name: Liuyu circuit breaker

Product name: HUM1 moulded case circuit breaker

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Application

It is divided into four types, Type C(basic type),Type L (standard type),Type M (high breaking capacity type ),and Type H (higher breaking capacity type). It has characteristics of small size,high breaking capa city,short arcin g,resist to vibratio n,and so on,which is an ideal product for the use on land and in ship, It is applied in the line of AC 50Hz,voltage 660V or below, rated insula ting voltage up to 800V(for HUM1-63,it s500V),and it

infrequent changeover and infrequent start of motor. Circuit breaker has overload,short-circuit and under- which can protect the line and power supply equip There are two kinds of installation, vertical installati horizontal installation(transverse insatallation). It accords with IEC 60947-2 standard.

Main technical parameter

Model	Frame size rated current (A)	Rated operation voltage (V)	Rated insulation voltage (V)	Rated limit short- circuit breaking capacity (kA)
Model	Frame size rated current (A)	Rated operation voltage (V)	Rated insulation voltage (V)	400V/690V
HUM1-63L	63	400	500	25
HUM1- 63M	63	400	500	50
HUM1-100C	100	690	500	25
HUM1-100L	100	690	500	35
HUM1-100M	100	690	500	50
HUM1-100H	100	690	500	85
HUM1-225C	225	690	500	25
HUM1-225L	225	690	500	35
HUM1-225M	225	690	500	50
HUM1-225H	225	690	500	85
HUM1-400C	400	690	500	35

Model	Frame size rated current (A)	Rated operation voltage (V)	Rated insulation voltage (V)	Rated limit short- capacity (kA)
Model	Frame size rated current (A)	Rated operation voltage (V)	Rated insulation voltage (V)	400V/690V
HUM1-400L	400	690	500	50
HUM1-400M	400	690	500	65
HUM1-400H	400	690	500	100
HUM1-630C	630	690	500	35
HUM1-630L	630	690	500	50
HUM1-630M	630	690	500	65
HUM1-800M	800	690	500	75
HUM1-800H	800	690	500	100
HUM1-1250	1250	690	500	85
